Pole Line TM Insulators

EPAC-Polyline insulators feature a high dielectric, smooth, glossy finish that is UV-stabilized for a prolonged service life. EPAC uses an advanced method for securing end fittings, where Tongue and Clevis Hardware is crimped onto the rod from all directions simultaneously, eliminating the need for adhesives. The end fitting design ensures flashovers occur at the outer rim, away from the rods. Each insulator undergoes a pull test to confirm its rated strength. The polyester resin compound used in the pultruded rod resists hardening or becoming brittle over time. The rod maintains stability under tension and vibration. The dielectric strength of 1 inch of rod equals 16.5KV dry impulse. EPAC-Polyline Insulators are produced to LWIWG-03 specification.

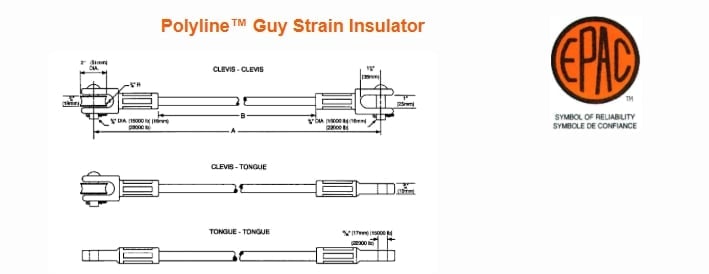

• Polyline Fiberglass Guy Strain Insulators -

SPECIFICATIONS:

Fittings: High Strength Aluminium Alloy.

Rod: Fiberglass with Ultraviolet Protective Coating.

Hardware: Clevis Pin-Steel Galvanized CSA G-164 Cotter Pin- Stainless Steel.

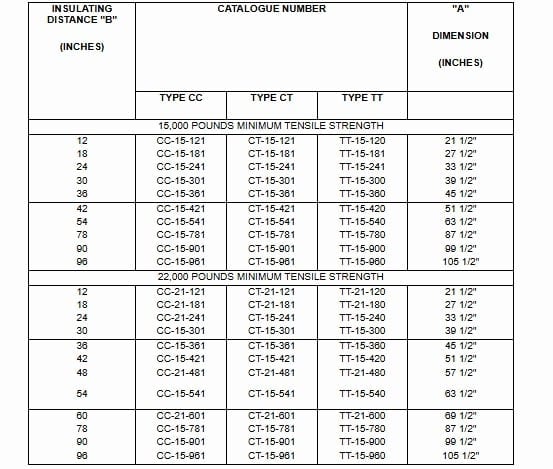

List of Catalogue Numbers for Types "CC" and "CT".

Include one Roller. On Type "CC" if extra roller required change last digit to 2. E.g. CC-15-542.

If No roller is required for either type "CC" or "CT". Change the last digit to 0 (e.g. CC-15-540).

NOTE: Lengths other than those listed are available.

Select Strength Class and type required e.g. CC-15-add insulating distance expressed in inches and add last digit, specify number of rollers.

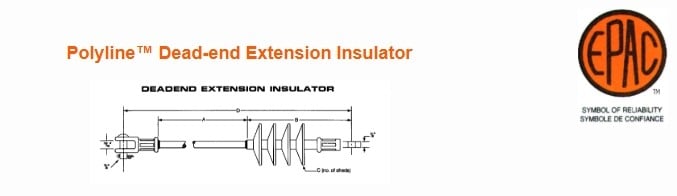

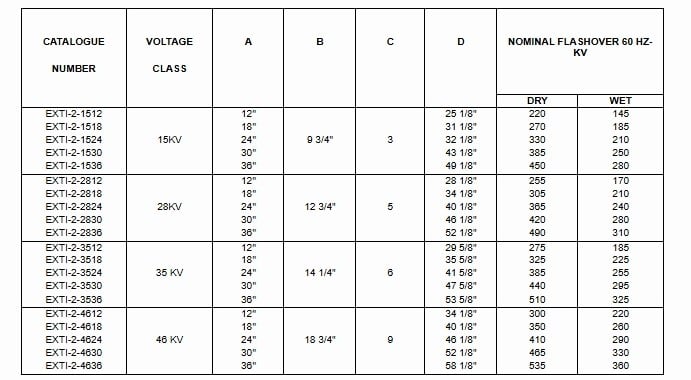

• Polyline Deadend Extension Insulators -

SPECIFICATION:

Weathershed Material: EPDM Rubber Compound.

Fittings: High Strength Aluminium Alloy.

Rod: Fiberglass with Ultraviolet Protective Coating.

NOTE: Other Lengths are available upon request.

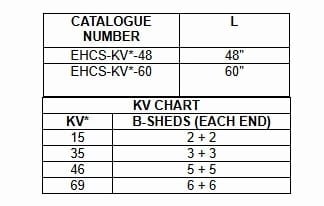

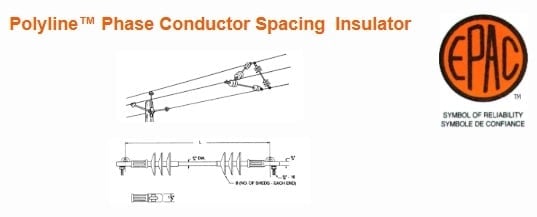

• Polyline Phase Conductor Spacing Insulator -

SPECIFICATIONS:
Weathershed Material: EPDM Rubber Compound.
Fittings: High Strength Aluminium Alloy.
Rod: Fiberglass with Ultraviolet Protective Coating.
Mounting Bracket and Hardware: Steel Galvanized.
Conductor Range: 4 Sol.- 556.ACSR (200"-858").

NOTE: KV*in catalogue number must be specified.

Other Lengths available upon request.

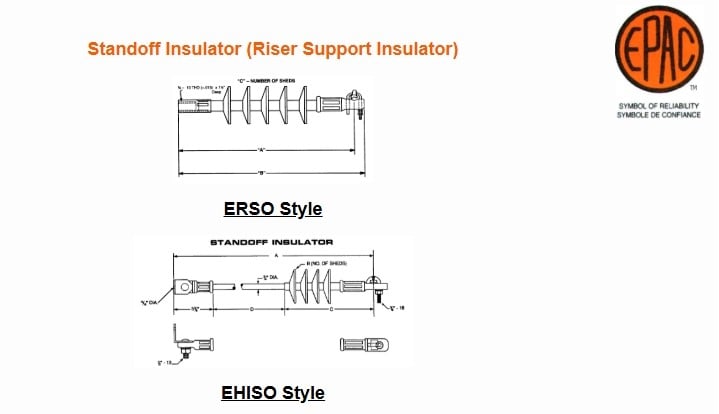

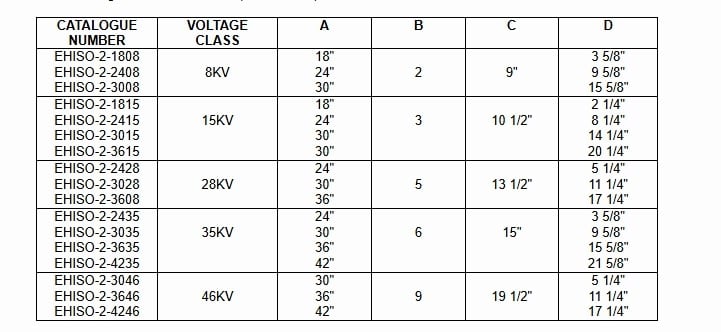

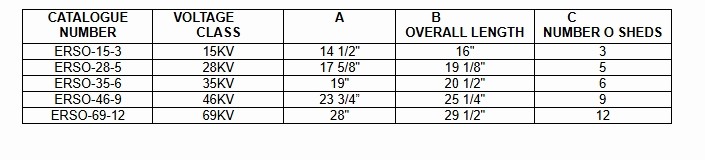

• Standoff Insulator (Riser Support Insulator) -

ERSO STYLE SPECIFICATIONS:

Weathershed Material: EPDM Rubber.

Fittings: High Strength Aluminum Alloy, available with 5/8-11 or 3/4-10 Thread Mounts.
Rod: Pultruded Fiberglass.
Hardware: Steel Galvanized.
Conductor Range: 4 SOL-667 ACSR (0200"-1.00").

EHISO STYLE SPECIFICATION:

Weathershed Material: EPDM Rubber.

Fittings: High Strength Aluminum Alloy.

Rod: Fiberglass with Ultraviolet Protective Coating.

Mounting Bracket & Hardware: Steel Galvanized.

Conductor Range: 4 Sol.-556 ACSR (0.200"-0.858").

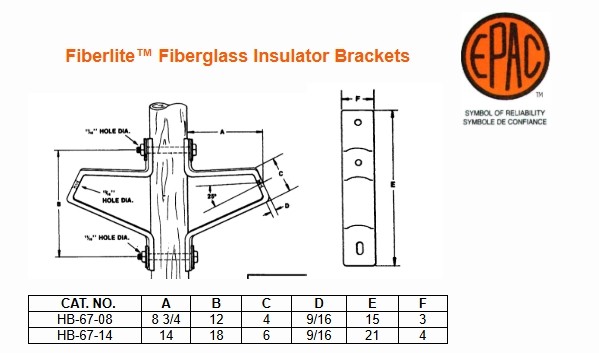

• Fiberlite Fiberglass Insulator Brackets -

 Fiberglass Insulator Brackets Advantages:

1. Light Weight.
2. Less Installation Time.
3. Improved Electrical Impulse & Leakage Characteristics.
4. Less Right-Of-Way Clearance.
5. Less Tree Trimming Costs.
6. Reduced Pole Fires from 60 cycle Leakage Current.
7. Less Storage Room.
8. Easier for Lineman to Work.
9. Eliminated the need for Crossarm metal Gains.
10. Gray Colour Blends with Sky.

Technical Data:

Material: The Fiberlite Bracket is made by Compression molding a mixture of non-directional Chopped glass fiber and inorganic filled polyester resin.

Weight:

Water Absorption: (Water at 80 F)

Weathering: After fifteen years of use there is no change in appearance or characteristics. Each Bracket is coated with Acrylic resin for longer life.

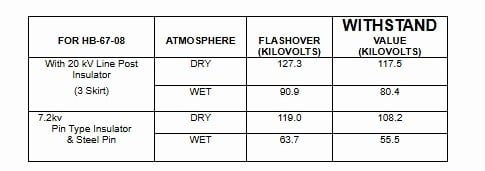

Flame Resistance: When exposed to Bunsen Burner flame at 1500 F for 45 seconds, Flame self-extinguished in 5 seconds. At 60 second exposure to same flame required 30 seconds to self-extinguish.

Minimum Ultimate Load:

Arc Resistance:

Test performed in accordance with ANSI Specification C29.1-1967.

Critical 1 1/2 X 40 Micro Second Impulse Flashover.

Specifications:

Rod: Fiberglass with Ultraviolet Protective Coating.

Colour: Munsel Gray

Base and End Fittings: High Strength Cast Aluminum Alloy.

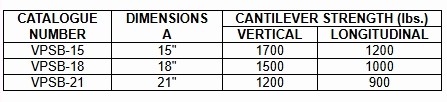

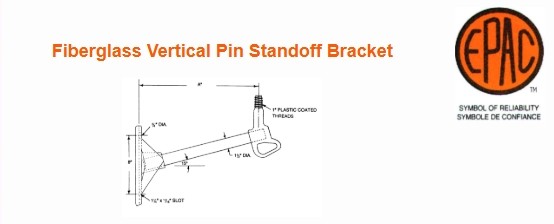

• Fiberglass Vertical Pin Standoff Bracket -

Specifications:

Rod: Fiberglass with Ultraviolet Protective Coating.

Colour: Munsel Gray.

Base and End Fittings: High Strength Cast Aluminum Alloy.

Note: Other Lengths available upon Request.

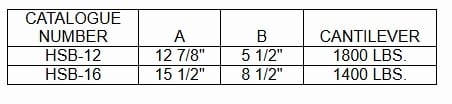

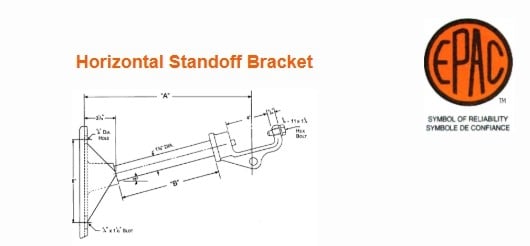

• Horizontal Standoff Bracket -

Specifications:

Rod: Fiberglass with Ultraviolet Protective Coating.
Colour: Munsel Gray.
Base and End Fittings: High Strength Cast Aluminum Alloy.

POLE LINE HARDWARE

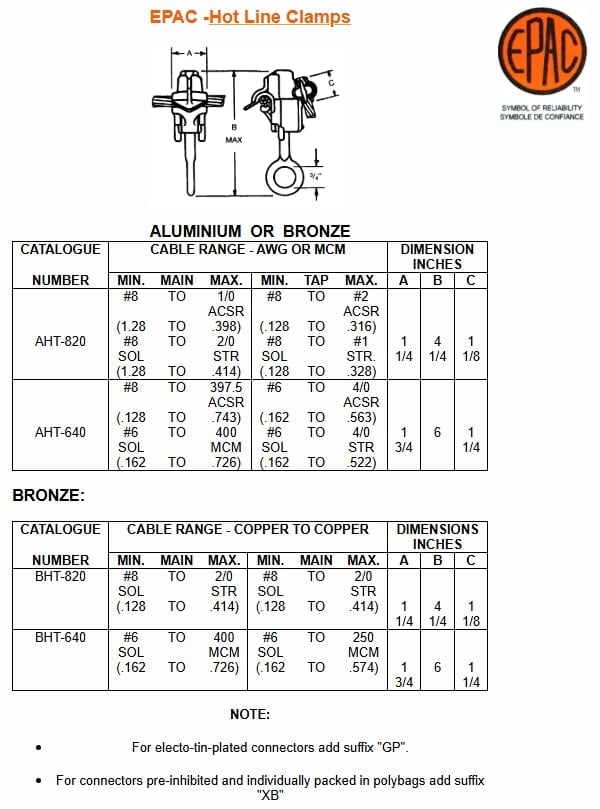

• Hot Line Clamps-

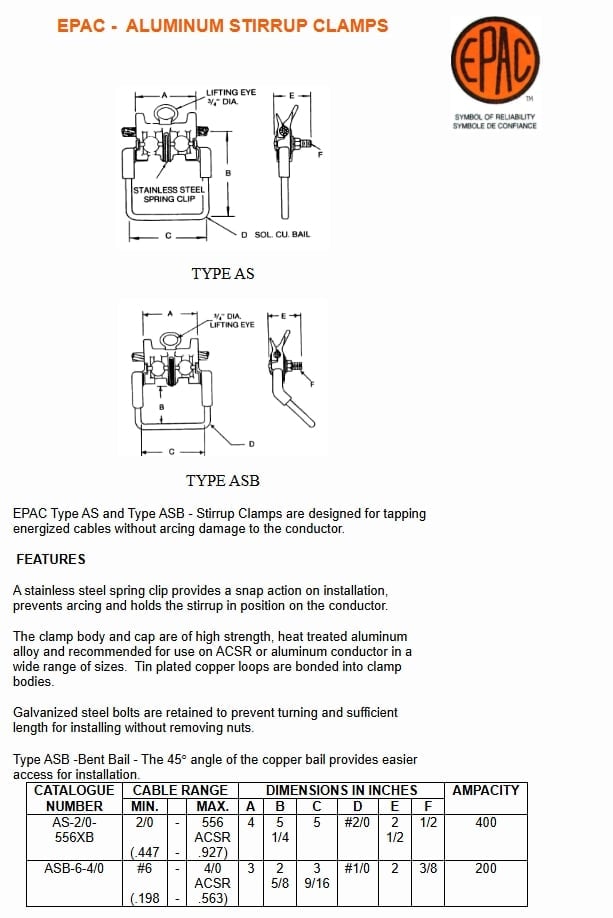

• Aluminum Stirrup Clamps -

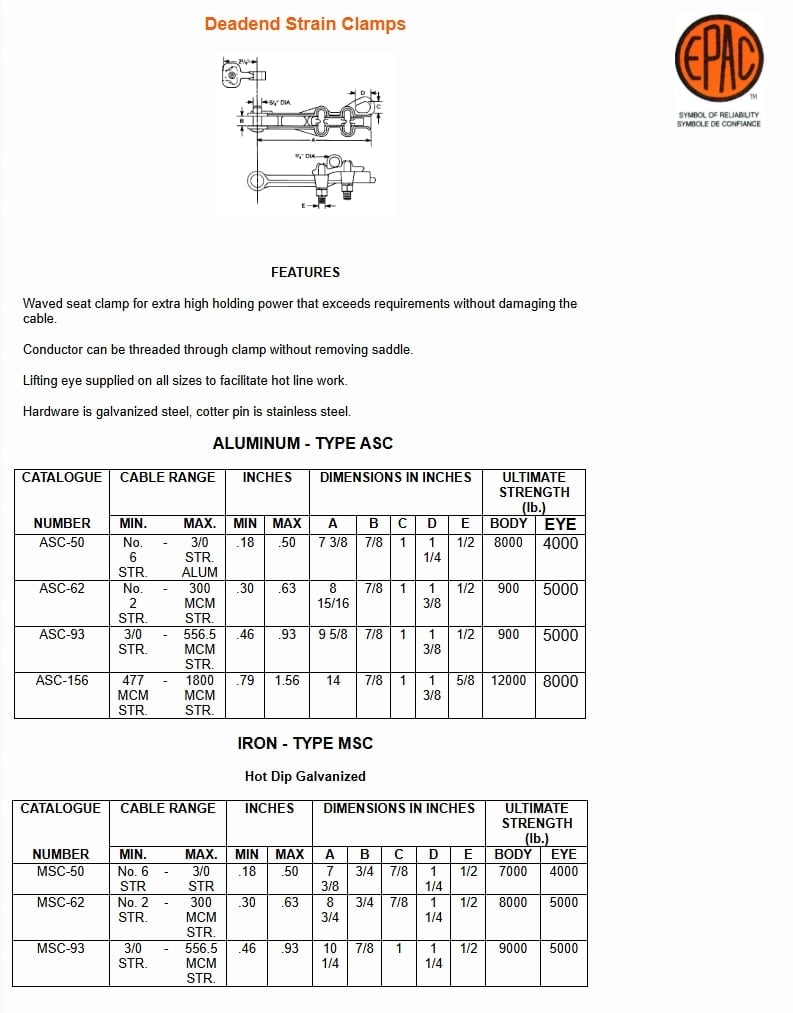

• Deadend Strain Clamps-

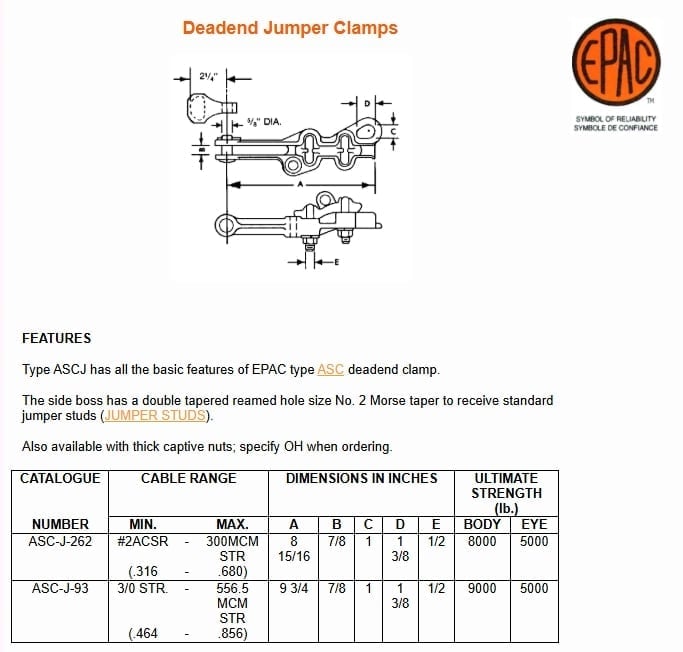

• Deadend Jumper Clamps-

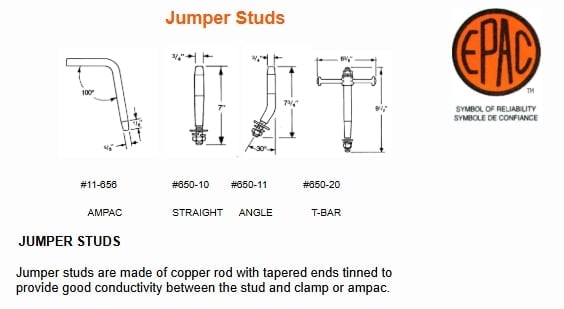

• Jumper Studs-

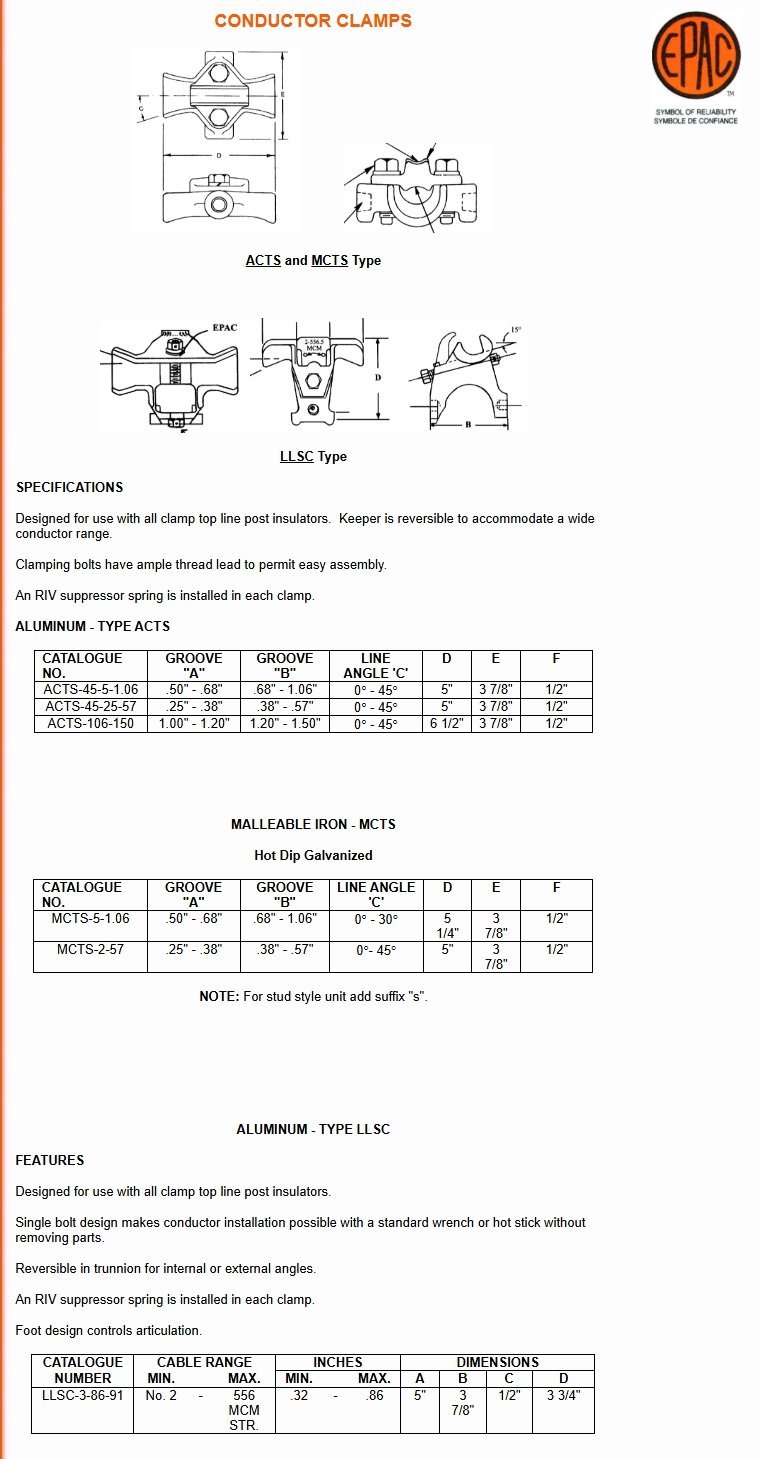

• Conductor Clamps-

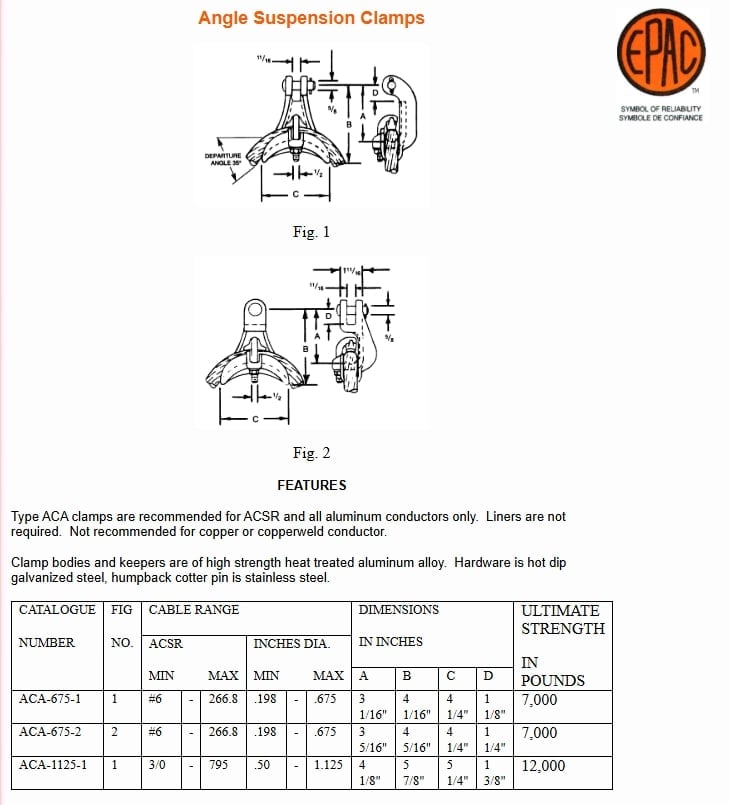

• Angle Suspension Clamps-

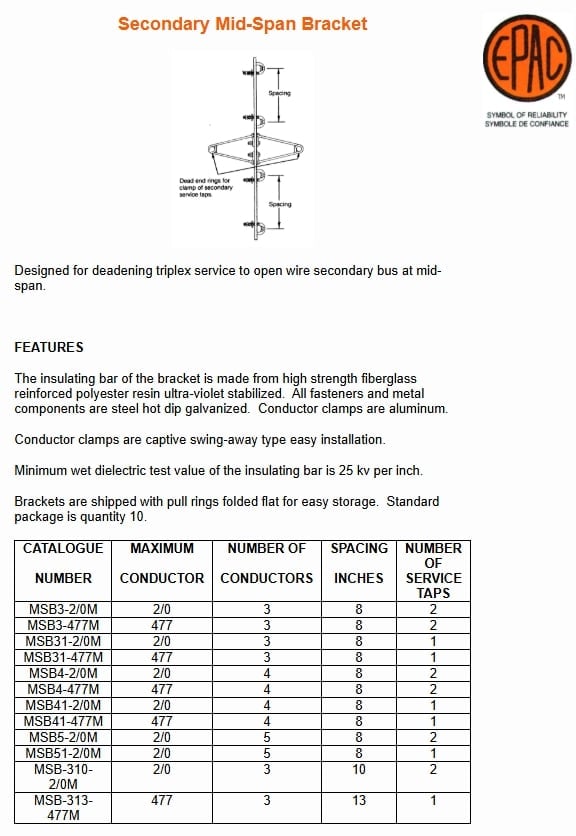

• Secondary Mid-Span Bracket-

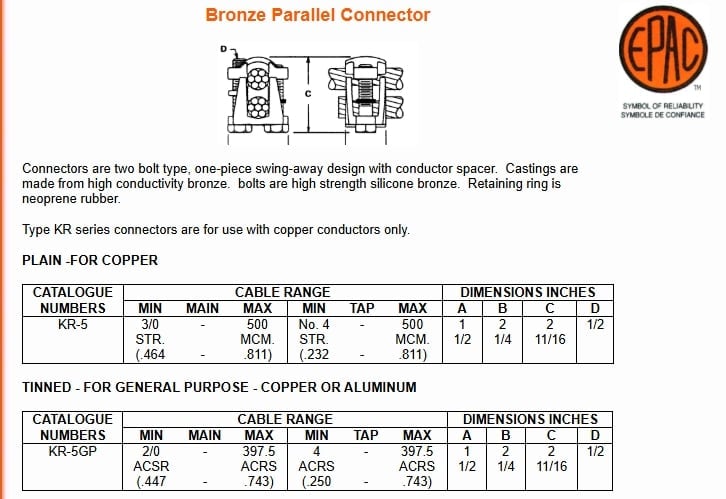

• Bronze Parallel Connector-

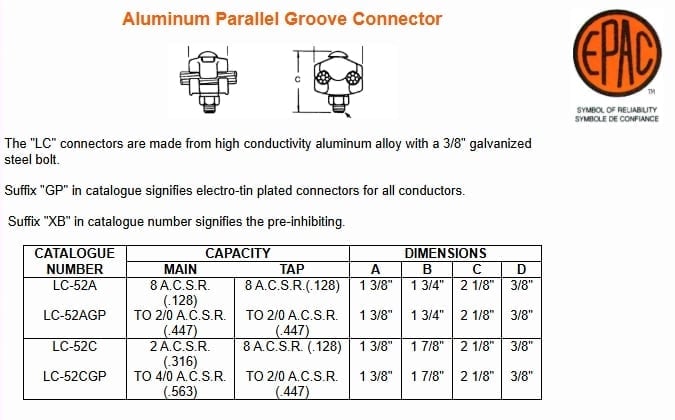

• Aluminum Parallel Groove Connector-

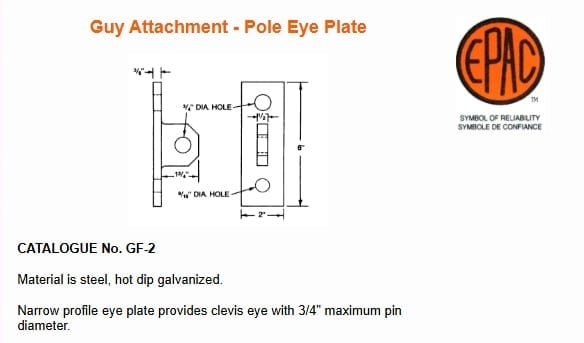

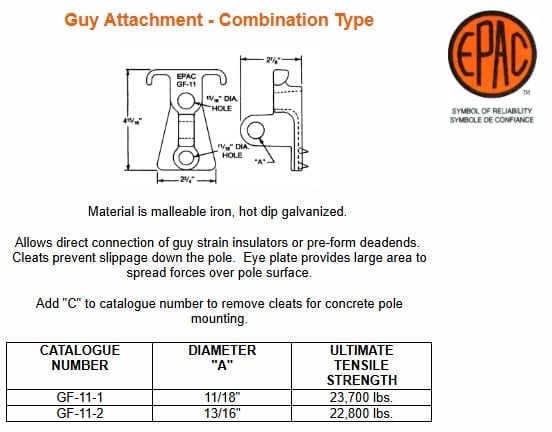

• Guy Attachment - Combination Type-

• Guy Attachment - Pole Eye Plate-

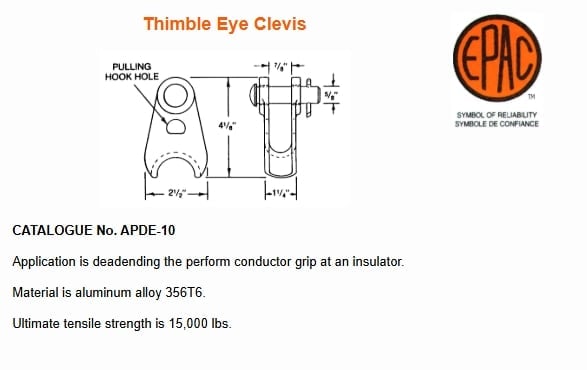

• Thimble Eye Clevis-

• Bolt Eye-

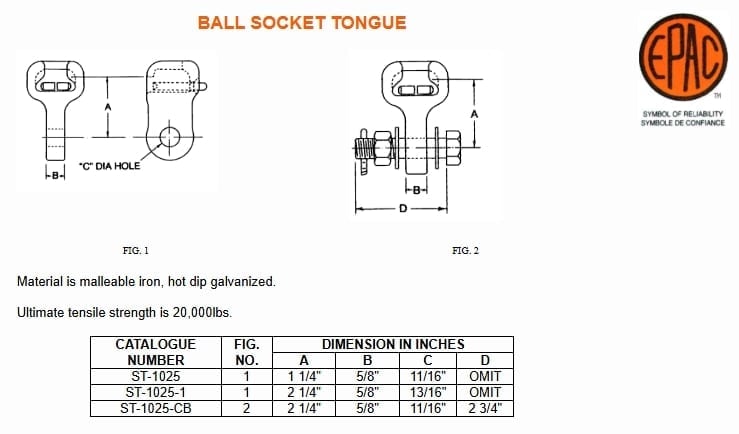

• Ball Socket Tongue-

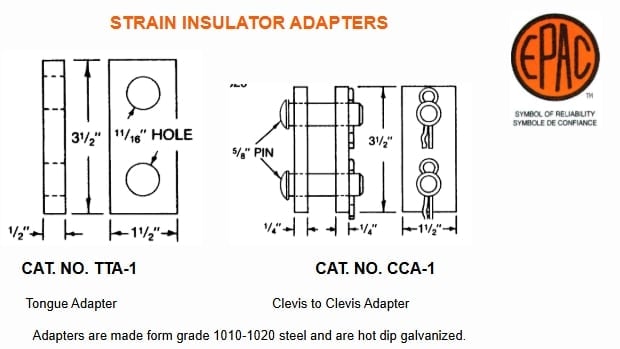

• Strain Insulator Adaptors-

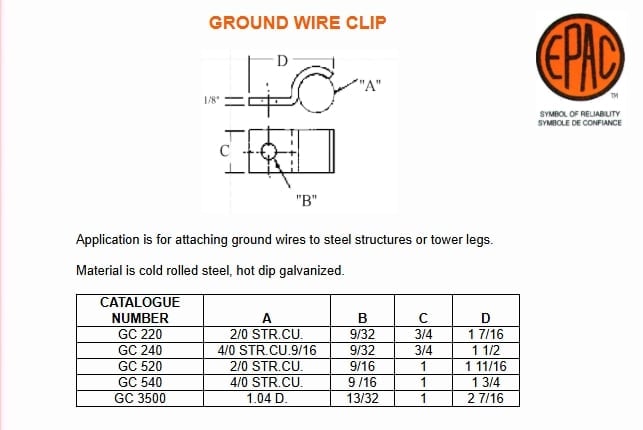

• Ground Wire Clip-

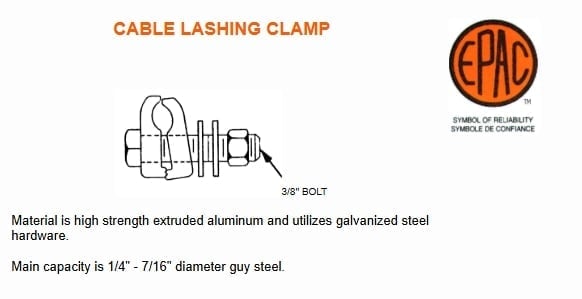

• Cable Lashing Clamp-

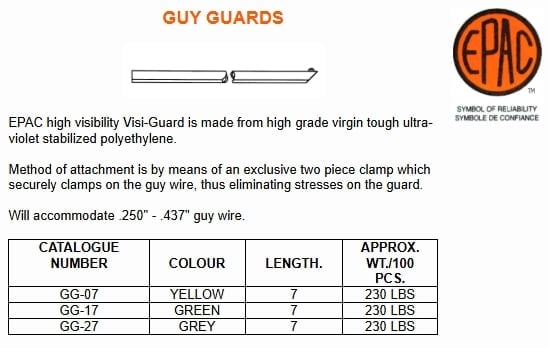

• Guy Guards-

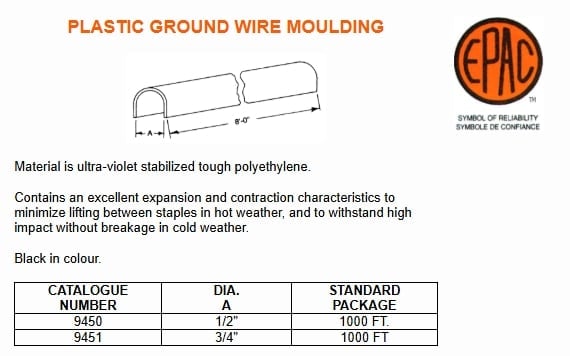

• Ground Wire Moulding-

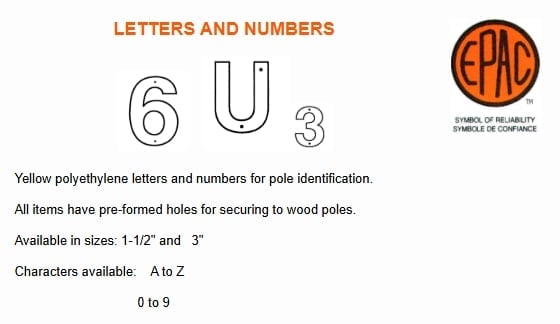

• Letters and Numbers-

STREET LIGHTNING

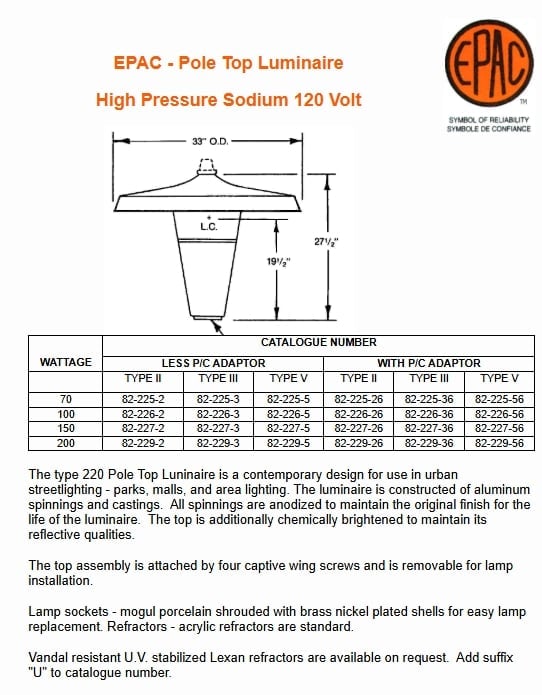

• Pole Top Luminaire - Type 220-

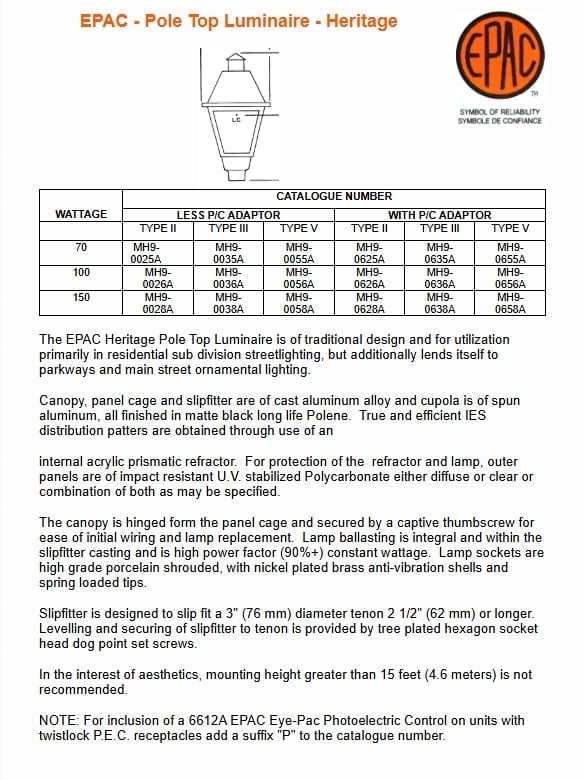

• Pole Top Luminaire - Heritage-

• Multiple Street Lighting Relays-

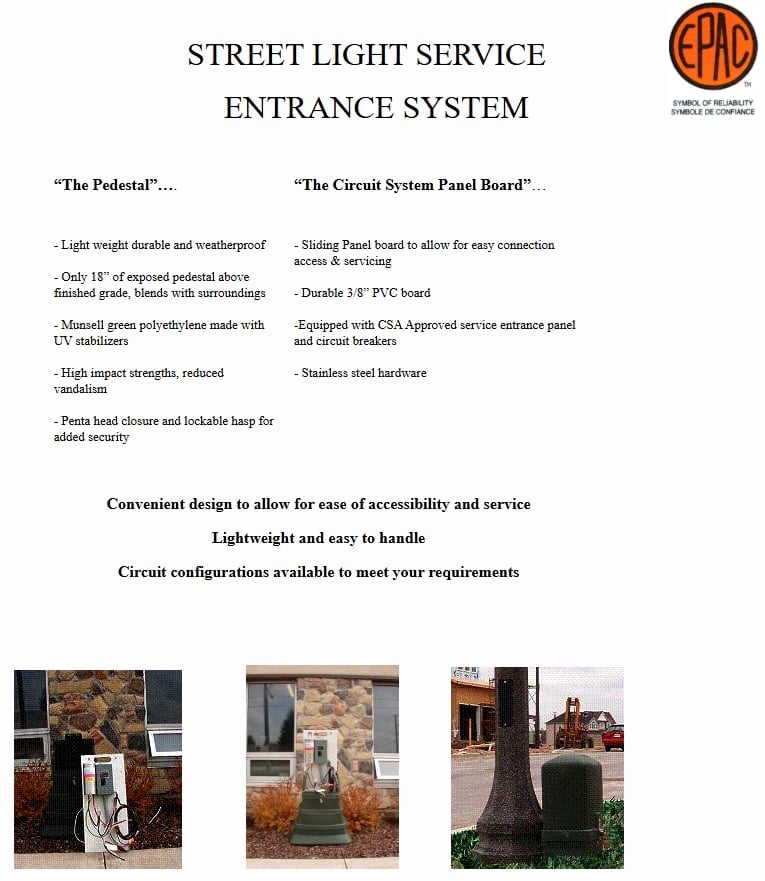

• Street Light Service Entrance system-

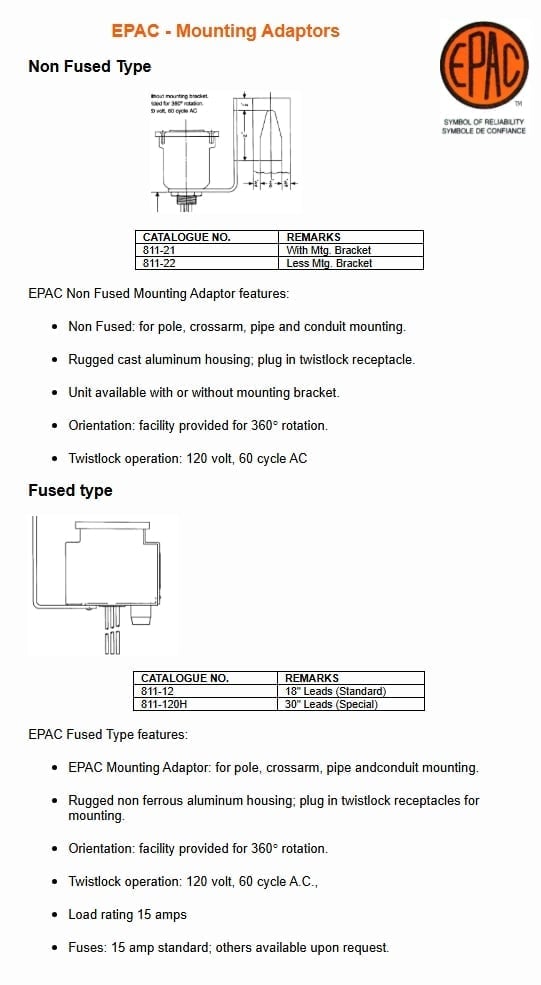

• Mounting Adaptors-

TOOLS AND SAFETY

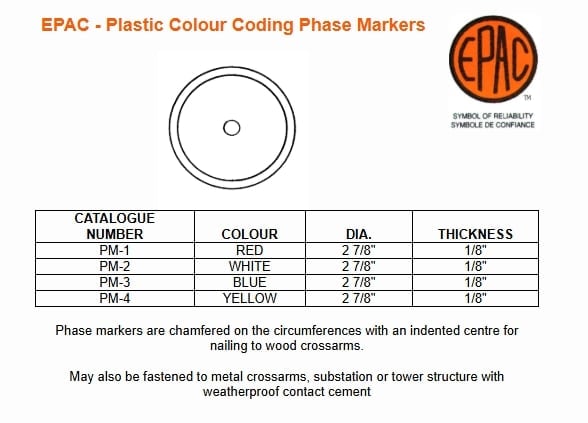

• Plastic Colour Coding Phase Markers-

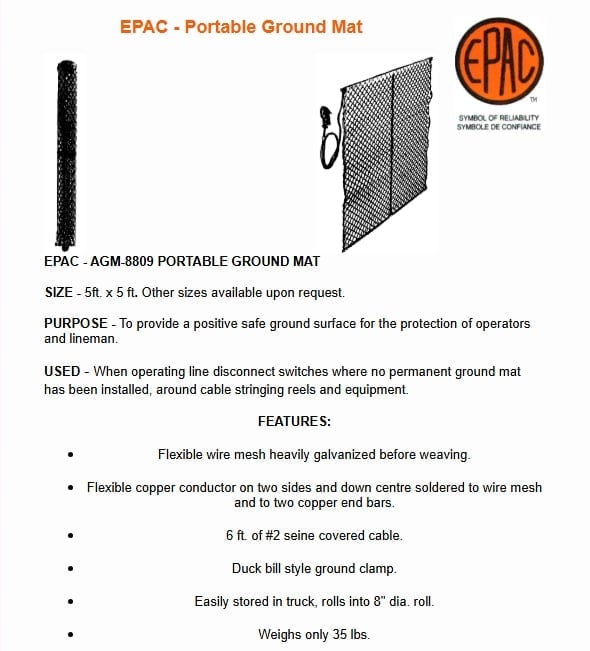

• Portable Ground Mat-

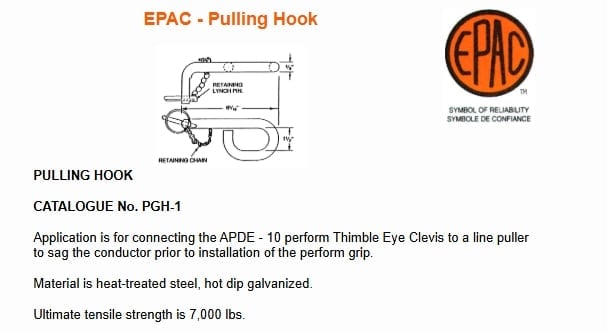

• Pulling Hook-

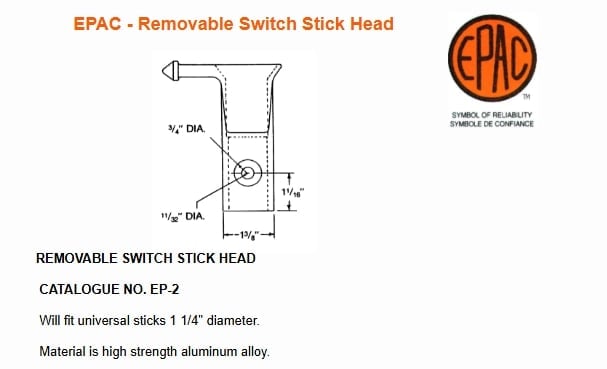

• Removable Switch Stick Head-
