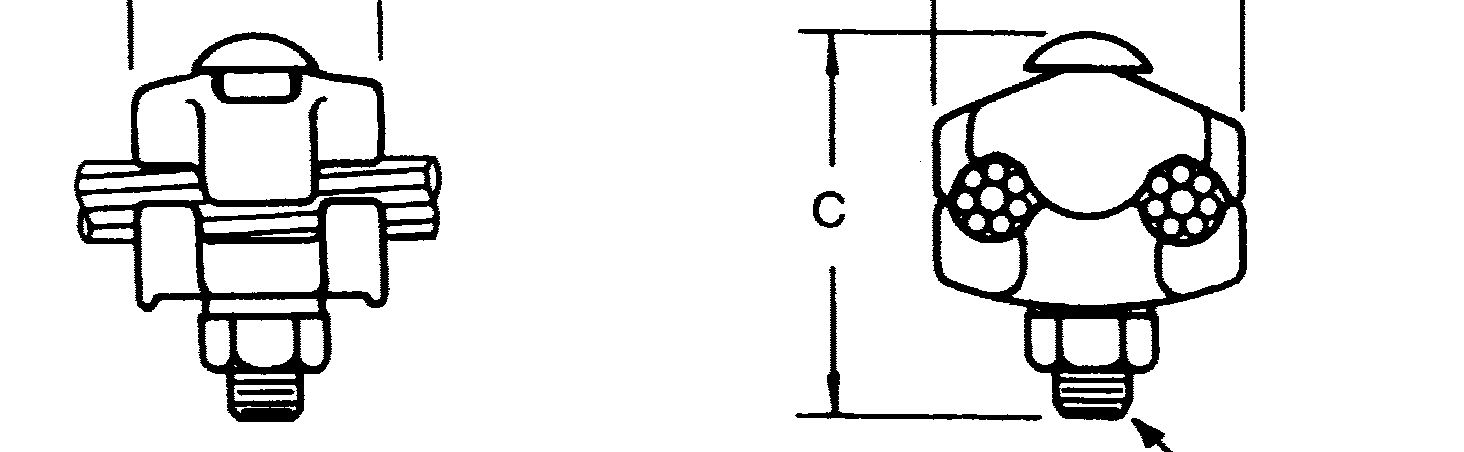

Aluminum Parallel Groove Connector
The "LC" connectors are made from high conductivity aluminum alloy with a 3/8" galvanized steel bolt.
Suffix "GP" in catalogue signifies electro-tin plated connectors for all conductors.
Suffix
"XB" in catalogue number signifies the pre-inhibiting.
|
CATALOGUE |
CAPACITY |
DIMENSIONS |
||||
|
NUMBER |
MAIN |
TAP |
A |
B |
C |
D |
|
LC-52A |
8
A.C.S.R.(.128) |
8
A.C.S.R.(.128) |
1
3/8" |
1
3/4" |
2
1/8" |
3/8" |
|
LC-52AGP |
TO
2/0 A.C.S.R. (.447) |
TO
2/0 A.C.S.R. (.447) |
1
3/8" |
1
3/4" |
2
1/8" |
3/8" |
|
LC-52C |
2
A.C.S.R. (.316) |
8
A.C.S.R. (.128) |
1
3/8" |
1
7/8" |
2
1/8" |
3/8" |
|
LC-52CGP |
TO
4/0 A.C.S.R. (.563) |
TO
2/0 A.C.S.R. (.447) |
1
3/8" |
1
7/8" |
2
1/8" |
3/8" |
