Angle Suspension Clamps

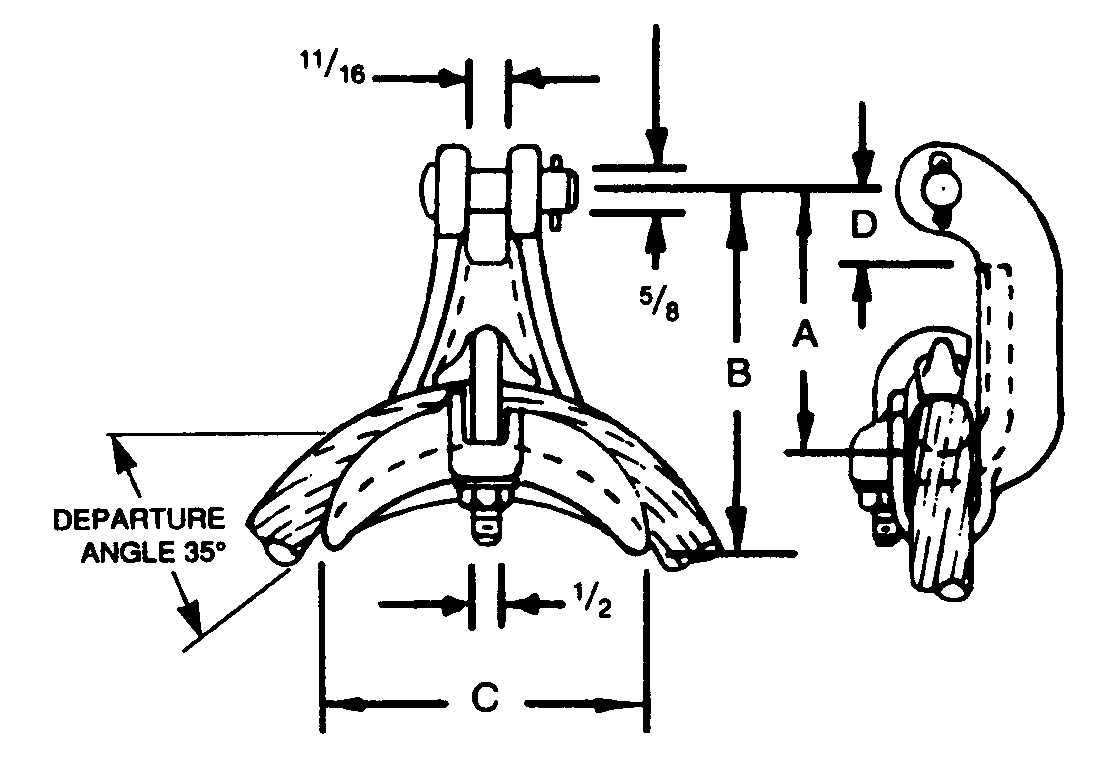

Fig. 1

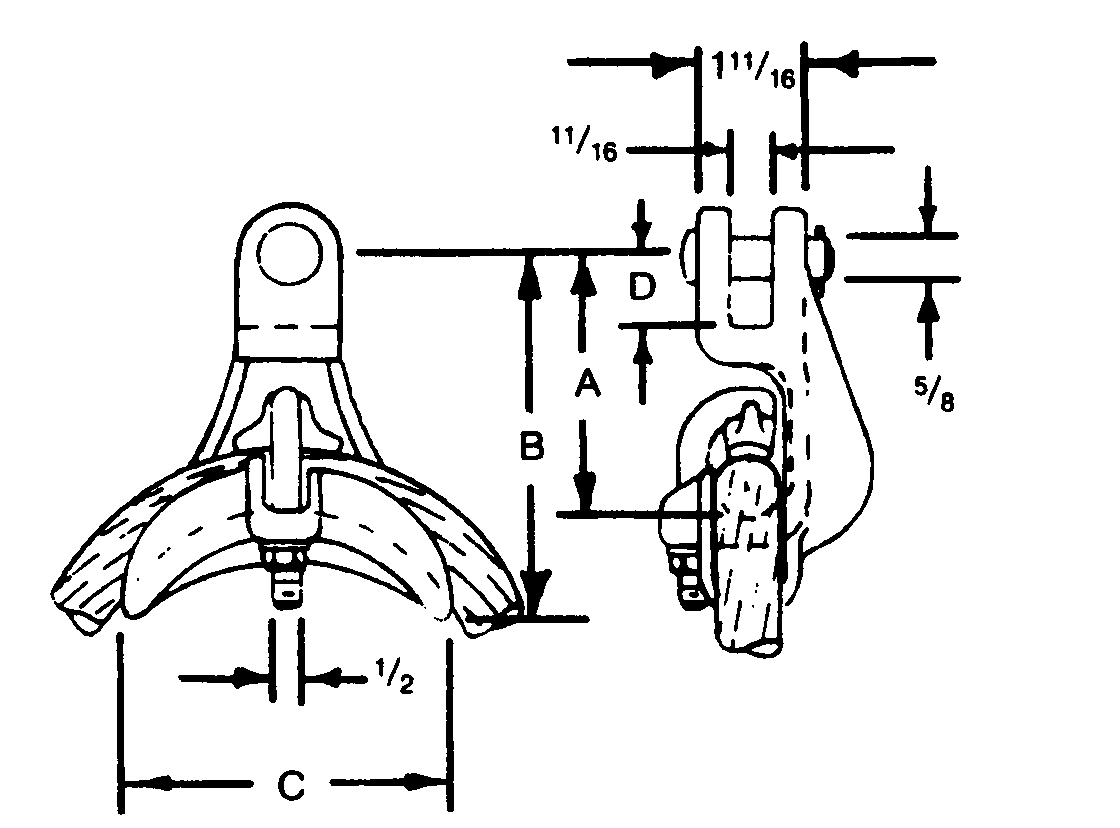

Fig. 2

FEATURES

Type ACA clamps are recommended for ACSR and all aluminum conductors only.  Liners are not required.  Not recommended for copper or copperweld conductor.

Clamp bodies and keepers are of high strength heat treated aluminum alloy.  Hardware is hot dip galvanized steel, humpback cotter pin is stainless steel.

CATALOGUE

FIG

CABLE RANGE

DIMENSIONS

IN INCHES

ULTIMATE STRENGTH

IN POUNDS

NUMBER

NO.

ACSR

INCHES DIA.





MIN



MAX

MIN



MAX

A

B

C

D

ACA-675-1

1

#6

-

266.8

.198

-

.675

3 1/16"

4 1/16"

4 1/4"

1 1/8"

7,000

ACA-675-2

2

#6

-

266.8

.198

-

.675

3 5/16"

4 5/16"

4 1/4"

1 1/4"

7,000

ACA-1125-1

1

3/0

-

795

.50

-

1.125

4 1/8"

5 7/8"

5 1/4"

1 3/8"

12,000
