Deadend Jumper Clamps



FEATURES

Type ASCJ has all the basic features of EPAC type ASC deadend clamp.

The side boss has a double tapered reamed hole size No. 2 Morse taper to receive standard jumper studs (JUMPER STUDS).

Also available with thick captive nuts; specify OH when ordering.

CATALOGUE

CABLE RANGE

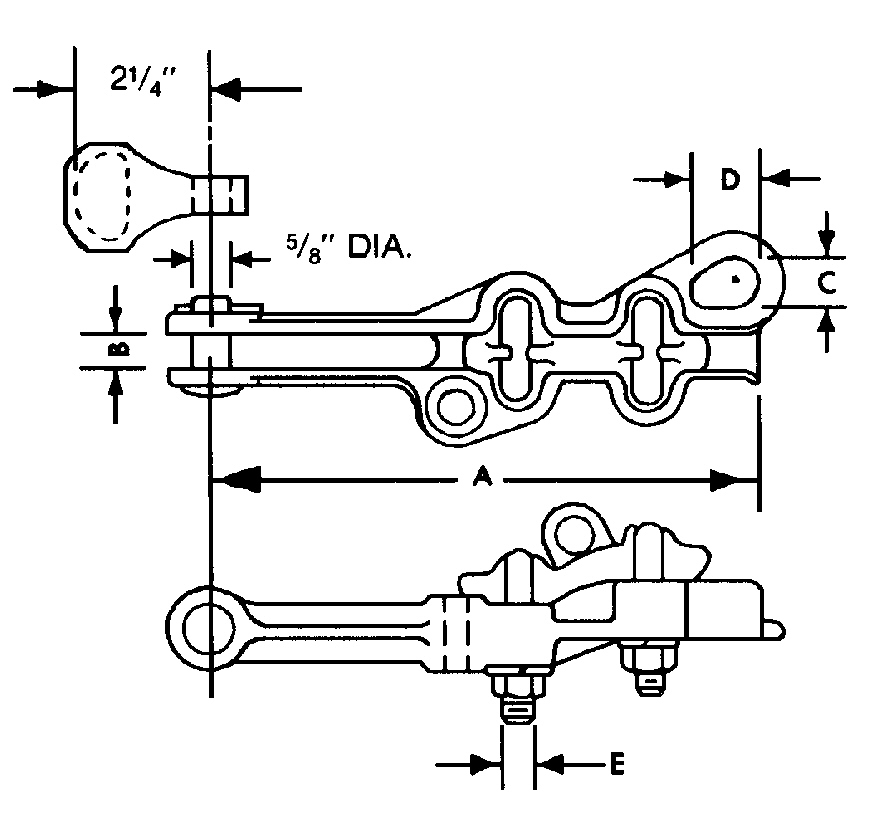

DIMENSIONS IN INCHES

ULTIMATE STRENGTH (lb.)

NUMBER

MIN.



MAX.

A

B

C

D

E

BODY

EYE

ASC-J-262

#2ACSR

-

300MCM STR

8 15/16

7/8

1

1 3/8

1/2

8000

5000



(.316

-

.680)















ASC-J-93

3/0 STR.

-

556.5 MCM STR

9 3/4

7/8

1

1 3/8

1/2

9000

5000



(.464

-

.856)
