CONDUCTOR CLAMPS



ACTS and MCTS Type



LLSC Type

SPECIFICATIONS

Designed for use with all clamp top line post insulators.  Keeper is reversible to accommodate a wide conductor range.

Clamping bolts have ample thread lead to permit easy assembly.

An RIV suppressor spring is installed in each clamp.

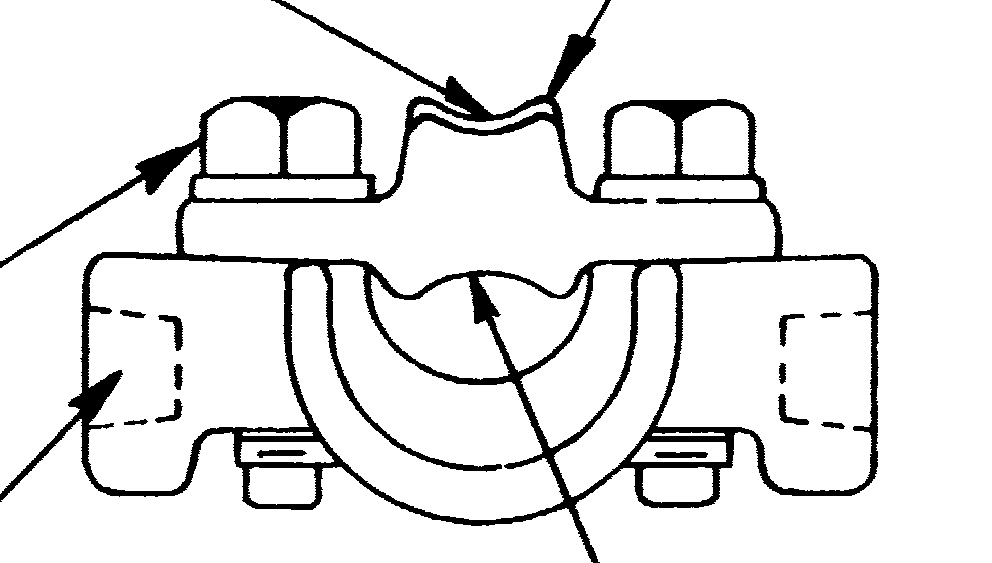

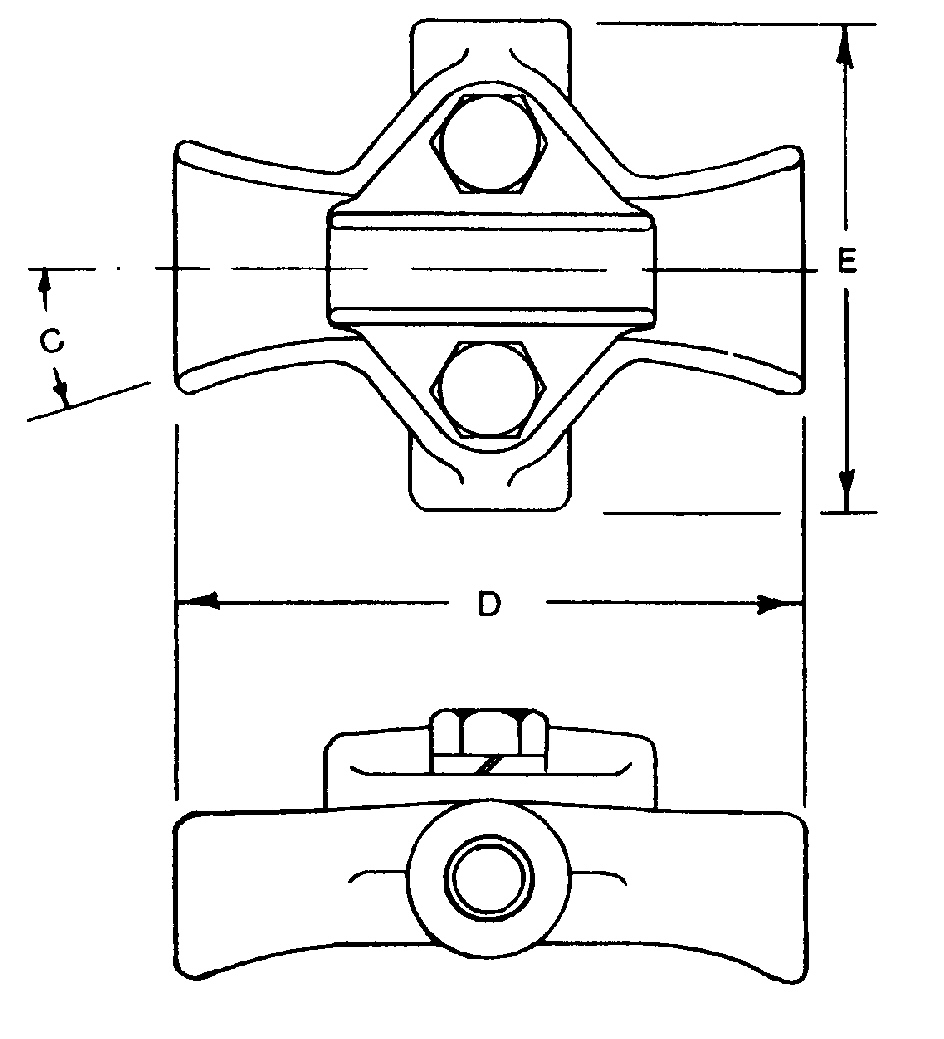

ALUMINUM - TYPE ACTS

CATALOGUE NO.

GROOVE "A"

GROOVE "B"

LINE ANGLE 'C'

D

E

F

ACTS-45-5-1.06

.50" - .68"

.68" - 1.06"

0 - 45

5"

3 7/8"

1/2"

ACTS-45-25-57

.25" - .38"

.38" - .57"

0 - 45

5"

3 7/8"

1/2"

ACTS-106-150

1.00" - 1.20"

1.20" - 1.50"

0 - 45

6 1/2"

3 7/8"

1/2"





MALLEABLE IRON - MCTS

Hot Dip Galvanized

CATALOGUE NO.

GROOVE "A"

GROOVE "B"

LINE ANGLE 'C'

D

E

F

MCTS-5-1.06

.50" - .68"

.68" - 1.06"

0 - 30

5 1/4"

3 7/8"

1/2"

MCTS-2-57

.25" - .38"

.38" - .57"

0- 45

5"

3 7/8"

1/2"

NOTE: For stud style unit add suffix "s".

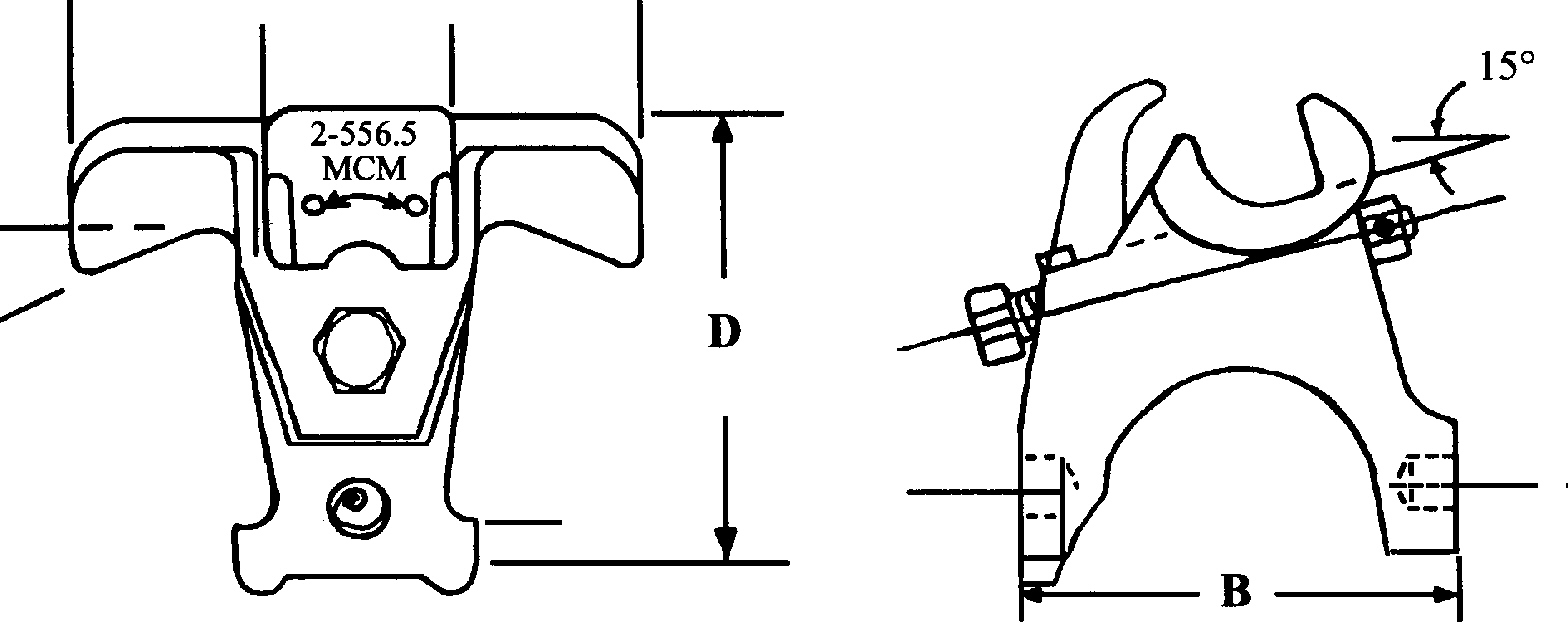

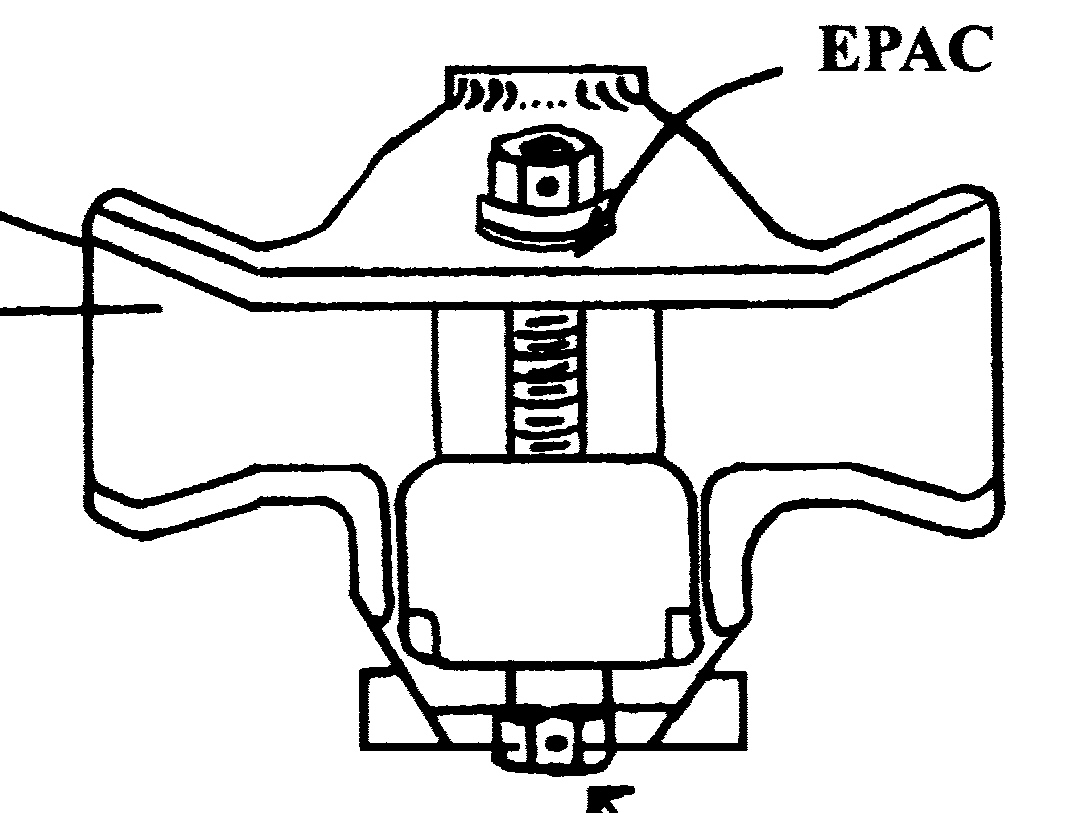

ALUMINUM - TYPE LLSC

FEATURES

Designed for use with all clamp top line post insulators.

Single bolt design makes conductor installation possible with a standard wrench or hot stick without removing parts.

Reversible in trunnion for internal or external angles.

An RIV suppressor spring is installed in each clamp.

Foot design controls articulation.

CATALOGUE

CABLE RANGE

INCHES

DIMENSIONS

NUMBER

MIN.



MAX.

MIN.



MAX.

A

B

C

D

LLSC-3-86-91

No. 2

-

556 MCM STR.

.32

-

.86

5"

3 7/8"

1/2"

3 3/4"
